Click Here for the new AJS1 Graphic Controller System (This will redirect you to www.AJS1.com)
AJS
PC Host Software (for use with AJS SmartChannel)
AJS

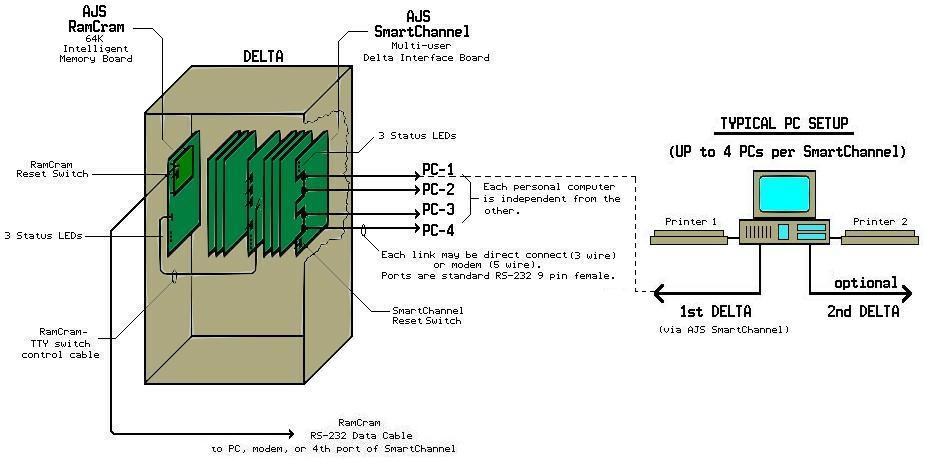

SmartChannel (4 user interface board that plugs into Delta channel slot)
AJS
RamCram (intelligent memory board that plugs into Delta memory slot)
Provides high level user interface to any Delta utilizing standard PCs
Replaces 5100 and 5200 systems, PCUs, color CRTs, operator's terminals
and printers
Historical data reports
Card access database management
Up to 4 PCs per SmartChannel (independent operation)
Multi-Delta configurations also supported
Report logs include all point, trend, alarm summary, physical group and
numerical point
Live VGA graphics are easily supported
On-line context sensitive help
Plus many other features
Plugs directly into any Delta channel slot (no special
software required)
Highly reliable microprocessor based design (PC not required for
operation with Delta)
Buffers (saves) all data when user PC is turned off
Supports up to 4 users (via standard RS232 9 pin connectors)
Supports remote telephone modem dial-in
Supports critical alarm dial-out to PC or pager (shows alarm address on
digital pager)
Allows any PC to easily load and save Delta data files from any remote
location
Microprocessor based design plugs directly into any Delta memory slot
User friendly menu-driven operation (eliminates cassette recorder and
floppy based disk loaders)
Expands Delta memory to the maximum possible while eliminating up to 7
boards
Complete data backups typically take less than one minute
Delta switches are automatically controlled by the RamCram
Dallas-Fort Worth Airport
Lockheed-Martin
Georgia Power Company
Atlanta Marriott Marquis
Atlanta Apparel Mart
RBC Liberty Insurance
Polaroid
Johnson Wax
and others.
AJS PC Host Operator Manual.pdf
AJS PC Host Supervisor Manual.pdf
